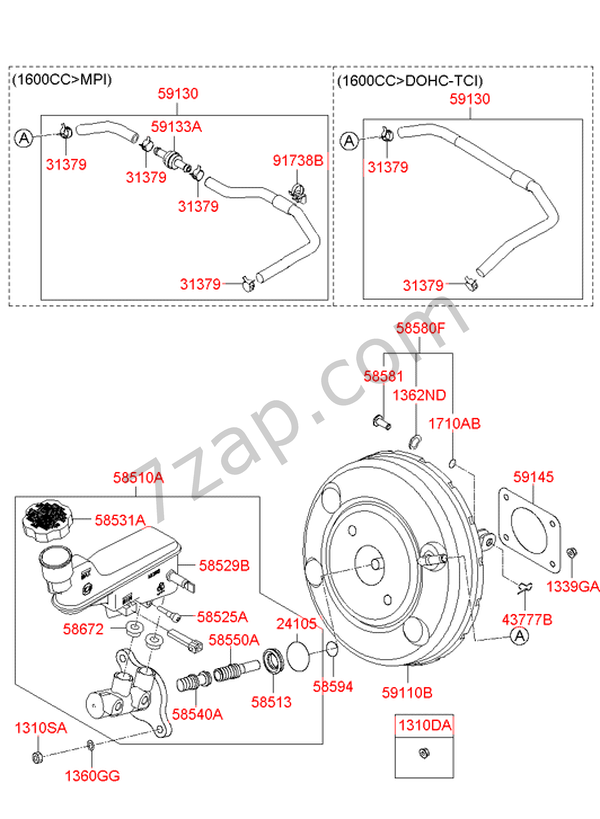

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1310DA | 1310008007B | 1 | NUT | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1310SA | 1310308007K | 2 | NUT | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1339GA | 1339608001 | 4 | NUT | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1360GG | 1360208007B | 1 | WASHER - SPRING | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1360GG | 1360208007K | 2 | WASHER - SPRING | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1362ND | 1362510153 | 1 | WASHER - WAVE | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1710AB | 1710007000 | 1 | O-RING | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 24105 | 591112S200 | 1 | O-RING SEAL | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 31379 | 3137921001 | 2 | CLIP - HOSE | Engine Capacity: [1E] 1600 CC - U2
Engine Type: [C] DOHC - TCI
Fuel Type: [5] DIESEL - DIESEL | 01.12.2012 | 18.12.2014 |
|
| 31379 | 3137921001 | 4 | CLIP - HOSE | Engine Capacity: [D2] 1600 CC - GAMMA
Engine Type: [A] DOHC - GDI
Fuel Type: [1] GASOLINE - UNLEADED | 01.12.2012 | 05.01.2015 |
|
| 43777B | 437771G100 | 1 | PIN - SNAP | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58510A | 58510A5700 | 1 | CYLINDER ASSY - BRAKE MASTER | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58513 | 585131G200 | 1 | SEAL - RESERVOIR | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58525A | 585251Y000 | 1 | SCREW | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58525A | 585252K500 | 1 | SCREW | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58529B | 58511A5500 | 1 | RESERVOIR - MASTER CYLINDER | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58531A | 5853107000 | 1 | CAP ASSY - RESERVOIR | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58531A | 585312B500 | 1 | CAP ASSY - RESERVOIR | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58540A | 585402K500 | 1 | PISTON ASSY - SECONDARY | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58540A | 585402S200 | 1 | PISTON ASSY - SECONDARY | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58550A | 585502K500 | 1 | PISTON ASSY - PRIMARY | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58550A | 585502S200 | 1 | PISTON ASSY - PRIMARY | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58580F | 585803B000 | 1 | PIN - ASSY | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58581 | 5858138000 | 1 | PIN - CLEVIS | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58594 | 5859417000 | 1 | O-RING | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58672 | 585132K500 | 1 | GROMMET | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 59110B | 59110A5500 | 1 | BOOSTER ASSY - BRAKE | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 59130 | 59130A5900 | 1 | HOSE ASSY - BRAKE BOOSTER VACUUM | Engine Capacity: [1E] 1600 CC - U2
Engine Type: [C] DOHC - TCI
Fuel Type: [5] DIESEL - DIESEL | 01.12.2012 | 18.12.2014 |
|
| 59130 | 59130A6600 | 1 | HOSE ASSY - BRAKE BOOSTER VACUUM | Engine Capacity: [D2] 1600 CC - GAMMA
Engine Type: [A] DOHC - GDI
Fuel Type: [1] GASOLINE - UNLEADED | 01.12.2012 | 05.01.2015 |
|
| 59133A | 591332H000 | 1 | VALVE - CHECK | Engine Capacity: [D2] 1600 CC - GAMMA
Engine Type: [A] DOHC - GDI
Fuel Type: [1] GASOLINE - UNLEADED | 01.12.2012 | 05.01.2015 |
|
| 59145 | 5914537010 | 1 | SEAL | [+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 91738B | 9173638000 | 1 | CLIP - STUD | Engine Capacity: [1E] 1600 CC - U2
Engine Type: [C] DOHC - TCI
Fuel Type: [5] DIESEL - DIESEL | 01.12.2012 | 18.12.2014 |
|
| 91738B | 9173638000 | 1 | CLIP - STUD | Engine Capacity: [D2] 1600 CC - GAMMA
Engine Type: [A] DOHC - GDI
Fuel Type: [1] GASOLINE - UNLEADED | 01.12.2012 | 05.01.2015 |
|
