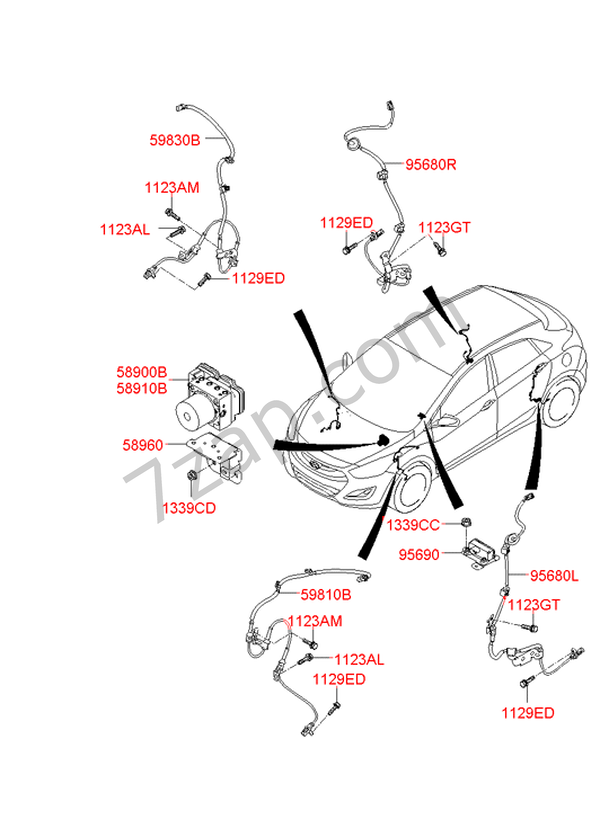

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1123AL | 1123008126B | 2 | BOLT | | 01.12.2012 | 05.01.2015 |
|
| 1123AM | 1123008146B | 2 | BOLT | | 01.12.2012 | 05.01.2015 |
|
| 1123GT | 1123308166K | 2 | BOLT | | 01.12.2012 | 05.01.2015 |
|
| 1129ED | 1129306146B | 2 | BOLT - WASHER ASSY | | 01.12.2012 | 05.01.2015 |
|
| 1129ED | 1129306146B | 2 | BOLT - WASHER ASSY | [+] Option Codes:
[5971A1] PARKG BRK CONTROL - HAND TYPE | 01.12.2012 | 05.01.2015 |
|
| 1339CC | 1339506001 | 3 | NUT - FLANGE | [+] Option Codes:
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 1339CD | 1339608007B | 2 | NUT - FLANGE | Body Type: [S2] SEDAN - 3DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 08.03.2013 | 07.10.2013 |
|
| 1339CD | 1339608007B | 2 | NUT - FLANGE | Body Type: [W5] WAGON - 5DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58900B | 58920A6210 | 1 | HYDRAULIC UNIT ASSY | Body Type: [S2] SEDAN - 3DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 08.03.2013 | 07.10.2013 |
|
| 58910B | 58920A6310 | 1 | HYDRAULIC UNIT ASSY | Body Type: [W5] WAGON - 5DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 58960 | 589603X810 | 1 | BRACKET - HYDRAULIC MODULE | Body Type: [S2] SEDAN - 3DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 08.03.2013 | 07.10.2013 |
|
| 58960 | 589603X810 | 1 | BRACKET - HYDRAULIC MODULE | Body Type: [W5] WAGON - 5DR 5P
[+] Option Codes:
[5891A2] ABS (ANTI LOCK BRK SYS)
[5894A1] ESC (ELECTRONIC STABILITY CONTROL)
[5896A1] ESS (EMERGENCY STOP SIGNAL)
[589GA1] VSM (VEHICLE STABILITY MANAGEMENT)
[589HA1] HAC (HILLSTART ASSIST CONTROL) | 01.12.2012 | 05.01.2015 |
|
| 59810B | 59810A6300 | 1 | SENSOR ASSY - FRONT ABS, LH | | 01.12.2012 | 05.01.2015 |
|
| 59830B | 59830A6300 | 1 | SENSOR ASSY - FRONT ABS, RH | | 01.12.2012 | 05.01.2015 |
|
| 95680L | 59910A6300 | 1 | SENSOR ASSY - ABS REAL WHEEL, LH | [+] Option Codes:
[5971A1] PARKG BRK CONTROL - HAND TYPE | 01.12.2012 | 05.01.2015 |
|
| 95680R | 59930A6300 | 1 | SENSOR ASSY - ABS REAL WHEEL, RH | [+] Option Codes:
[5971A1] PARKG BRK CONTROL - HAND TYPE | 01.12.2012 | 05.01.2015 |
|
| 95690 | 956303X600 | 1 | SENSOR ASSY - YAW RATE & G FORCE | [+] Option Codes:
[5894A1] ESC (ELECTRONIC STABILITY CONTROL) | 01.12.2012 | 05.01.2015 |
|
