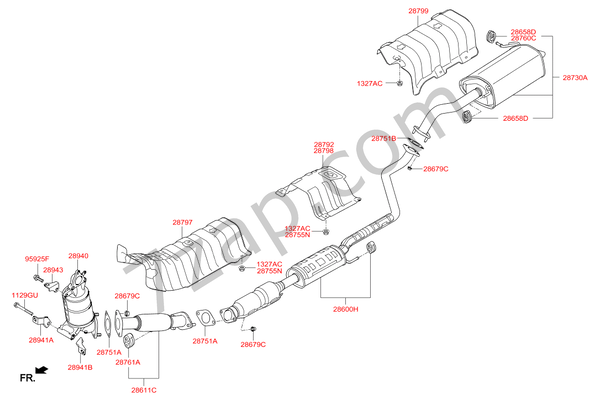

MUFFLER & EXHAUST PIPE HYUNDAI i30 12 (2012-2014)

PNC	Part Number	Qty	Part Name	Model Description	Start Date	End Date	information
1129GU	1129610206KA	1	BOLT - WASHER ASSY	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
1129GU	1129610206KA	1	BOLT - WASHER ASSY	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
1327AC	1327106007K	14	NUT [Washer Assy]	Engine Capacity: [1E] 1600 CC - U2	11.03.2012	15.10.2012
28600H	28600A5500	1	MUFFLER COMPLETE - CENTER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28611C	28610A5500	1	MUFFLER ASSY - FRONT	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28658D	287613M300	2	HANGER - EXHAUST PIPE	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI	11.03.2012	12.12.2014
28679C	1318312000	2	NUT	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI	11.03.2012	12.12.2014
28679C	1318312000	2	NUT	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28679C	1318312000	2	NUT	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28730A	28710A5500	1	MUFFLER ASSY - REAR	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI	11.03.2012	12.12.2014
28751A	287512V000	1	GASKET - EXHAUST PIPE	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28751A	287512V000	1	GASKET - EXHAUST PIPE	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28751B	287511R000	1	GASKET - EXHAUST PIPE	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI	11.03.2012	12.12.2014
28755N	287553K000	14	NUT	Engine Capacity: [1E] 1600 CC - U2	15.10.2012	12.12.2014
28760C	287613K000	1	HANGER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI	11.03.2012	12.12.2014
28761A	28761H1000	1	HANGER - EXHAUST PIPE	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28792	28793A5500	1	PROTECTOR - HEAT CENTER	Engine Capacity: [1E] 1600 CC - U2	15.10.2012	12.12.2014
28797	287913X000	1	PANEL - HEAT PROTECTOR, FRONT	Engine Capacity: [1E] 1600 CC - U2	11.03.2012	15.10.2012
28797	287913X500	1	PANEL - HEAT PROTECTOR, FRONT	Engine Capacity: [1E] 1600 CC - U2	15.10.2012	12.12.2014
28798	28793A5100	1	PANEL - HEAT PROTECTOR, CENTER	Engine Capacity: [1E] 1600 CC - U2	11.03.2012	15.10.2012
28799	28795A5000	1	PANEL - HEAT PROTECTOR, REAR	Engine Capacity: [1E] 1600 CC - U2	11.03.2012	12.12.2014
28940	289402A640	1	CONVERTER ASSY - WARM UP CATALYTIC	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28940	289402A600	1	CONVERTER ASSY - WARM UP CATALYTIC	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
28941A	289412A711	1	BRACKET (A) - WARM-UP CATALYTIC CONVERTER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
28941A	289412A711	1	BRACKET (A) - WARM-UP CATALYTIC CONVERTER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28941B	289422A711	1	BRACKET (B) - WARM-UP CATALYTIC CONVERTER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
28941B	289422A711	1	BRACKET (B) - WARM-UP CATALYTIC CONVERTER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
28943	289432A700	1	BRACKET - CATALIZED PARTICULATE FILTER MOUNTING (C)	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
28943	289432A700	1	BRACKET - CATALIZED PARTICULATE FILTER MOUNTING (C)	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
95925F	289452A700	1	BOLT ASSY - WASHER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [7] MANUAL T/M - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	09.12.2014
95925F	289452A700	1	BOLT ASSY - WASHER	Engine Capacity: [1E] 1600 CC - U2 Engine Type: [C] DOHC - TCI Fuel Type: [5] DIESEL - DIESEL Transaxle: [F] AUTO - 6 SPEED 2WD [+] Option Codes: [2841B6] EMISSION REGULATION - EURO 4	11.03.2012	12.12.2014
