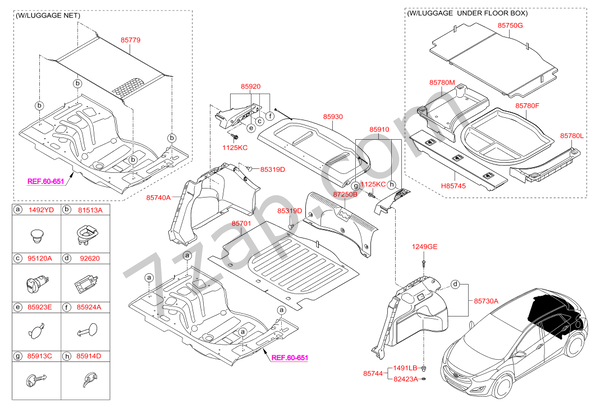

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1125KC | 1125406201 | 4 | BOLT [W/ WASHER] | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 1125KC | 1125406201 | 4 | BOLT [W/ WASHER] | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 1249GE | 1249205163 | 4 | SCREW - TAPPING | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 1249GE | 1249205163 | 4 | SCREW - TAPPING | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 1249GE | 1249205163 | 4 | SCREW - TAPPING | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 1249GE | 1249205163 | 10 | SCREW - TAPPING | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | | 11.03.2012 | 01.01.2013 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | | 21.11.2012 | 01.01.2013 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [6] DOHC - MPI | 21.11.2012 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 01.01.2013 |
|
| 1491LB | 1491405000 | 10 | GROMMET [ SCREW ] | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | Engine Type: [C] DOHC - TCI | 21.11.2012 | 12.12.2014 |
|
| 1491LB | 1491405000 | 4 | GROMMET [ SCREW ] | [+] Option Codes:
[8579A1] LUGGAGE NET | 21.11.2012 | 01.01.2013 |
|
| 1491LB | 1491405000 | 10 | GROMMET [ SCREW ] | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 21.11.2012 | 16.12.2014 |
|
| 1492YD | 1492104490 | 4 | CLIP - ROD | | 11.03.2012 | 01.01.2013 |
|
| 81513A | 85795A5000 | 4 | HOOK ASSY - LUGGAGE NET | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 81513A | 85795A5000 | 4 | HOOK ASSY - LUGGAGE NET | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 01.01.2013 |
|
| 82423A | 8691322000 | 4 | WASHER | | 11.03.2012 | 01.01.2013 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | | 21.11.2012 | 01.01.2013 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [6] DOHC - MPI | 21.11.2012 | 16.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 01.01.2013 |
|
| 82423A | 8691322000 | 10 | WASHER | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | Engine Type: [C] DOHC - TCI | 21.11.2012 | 12.12.2014 |
|
| 82423A | 8691322000 | 4 | WASHER | [+] Option Codes:
[8579A1] LUGGAGE NET | 21.11.2012 | 01.01.2013 |
|
| 82423A | 8691322000 | 10 | WASHER | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 21.11.2012 | 16.12.2014 |
|
| 85319D | 8574629000 | 3 | PLUG - TRIM MOUNTING | | 11.03.2012 | 16.12.2014 |
|
| 85319D | 8574629000RY | 4 | PLUG - TRIM MOUNTING, INT;RY | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85319D | 8574629000RY | 4 | PLUG - TRIM MOUNTING, INT;VYF | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85319D | 8574629000RY | 4 | PLUG - TRIM MOUNTING, INT;RY | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 85319D | 8574629000RY | 4 | PLUG - TRIM MOUNTING, INT;RY | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 85701 | 85701A5040RY | 1 | COVER ASSY - LUGGAGE, INT;RY | Fuel Type: [1] GASOLINE - UNLEADED
[+] Option Codes:
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85701 | 85701A5040RY | 1 | COVER ASSY - LUGGAGE, INT;VYF | Fuel Type: [1] GASOLINE - UNLEADED
[+] Option Codes:
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85701 | 85701A5050RY | 1 | COVER ASSY - LUGGAGE, INT;RY | Fuel Type: [5] DIESEL - DIESEL
[+] Option Codes:
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 12.12.2014 |
|
| 85730A | 85730A5000RY | 1 | TRIM ASSY - LUGGAGE SIDE, LH, INT;RY | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 85730A | 85730A5000RY | 1 | TRIM ASSY - LUGGAGE SIDE, LH, INT;RY | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 85730A | 85730A5020RY | 1 | TRIM ASSY - LUGGAGE SIDE, LH, INT;RY | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85730A | 85730A5020RY | 1 | TRIM ASSY - LUGGAGE SIDE, LH, INT;VYF | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85740A | 85740A5000RY | 1 | TRIM ASSY - LUGGAGE SIDE, RH, INT;RY | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 85740A | 85740A5000RY | 1 | TRIM ASSY - LUGGAGE SIDE, RH, INT;RY | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 85740A | 85740A5010RY | 1 | TRIM ASSY - LUGGAGE SIDE, RH, INT;RY | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85740A | 85740A5010RY | 1 | TRIM ASSY - LUGGAGE SIDE, RH, INT;VYF | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | | 11.03.2012 | 01.01.2013 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 01.01.2013 |
|
| 85744 | 8571422000 | 10 | GROMMET ASSY - SCREW | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 85744 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 85750G | 85710A5000RY | 1 | COVER ASSY - LUGGAGE TRAY, CENTER, INT;VYF | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85750G | 85710A5000RY | 1 | COVER ASSY - LUGGAGE TRAY, CENTER, INT;RY | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85779 | 8579017020 | 1 | NET ASSY - LUGGAGE FLOOR | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 16.12.2014 |
|
| 85780F | 85755A5000RY | 1 | TRAY ASSY - LUGGAGE, CENTER, INT;VYF | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85780F | 85755A5000RY | 1 | TRAY ASSY - LUGGAGE, CENTER, INT;RY | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85780L | 85750A5000RY | 1 | TRAY ASSY - LUGGAGE SIDE, LH, INT;VYF | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85780L | 85750A5000RY | 1 | TRAY ASSY - LUGGAGE SIDE, LH, INT;RY | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85780M | 85760A5000RY | 1 | TRAY ASSY - LUGGAGE SIDE, RH, INT;VYF | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85780M | 85760A5000RY | 1 | TRAY ASSY - LUGGAGE SIDE, RH, INT;RY | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 85910 | 85910A5000RY | 1 | TRIM ASSY - COVER SHELF SIDE, LH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85910 | 85910A5000RY | 1 | TRIM ASSY - COVER SHELF SIDE, LH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85910 | 85910A5000RY | 1 | TRIM ASSY - COVER SHELF SIDE, LH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85913C | 85913A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, LH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85913C | 85913A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, LH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85913C | 85913A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, LH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85914D | 85914A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, LH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85914D | 85914A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, LH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85914D | 85914A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, LH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85920 | 85920A5000RY | 1 | TRIM ASSY - COVER SHELF SIDE, RH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85920 | 85920A5100RY | 1 | TRIM ASSY - COVER SHELF SIDE, RH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85920 | 85920A5100RY | 1 | TRIM ASSY - COVER SHELF SIDE, RH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85923E | 85923A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, RH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85923E | 85923A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, RH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85923E | 85923A5000RY | 1 | CAP - COVERING SHELF SIDE FRONT, RH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85924A | 85924A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, RH, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85924A | 85924A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, RH, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85924A | 85924A5000RY | 1 | CAP - COVERING SHELF SIDE REAR, RH, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85930 | 85930A5000RY | 1 | TRIM ASSY - COVERING SHELF CENTER, INT;RY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85930 | 85930A5000RY | 1 | TRIM ASSY - COVERING SHELF CENTER, INT;VYF | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 85930 | 85930A5000RY | 1 | TRIM ASSY - COVERING SHELF CENTER, INT;RY | [+] Option Codes:
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | | 11.03.2012 | 01.01.2013 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | [+] Option Codes:
[8578A1] LUGGAGE NET HOOK | 01.01.2013 | 16.12.2014 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 86910 | 8571422000 | 4 | GROMMET ASSY - SCREW | [+] Option Codes:
[8579A1] LUGGAGE NET | 11.03.2012 | 01.01.2013 |
|
| 86910 | 8571422000 | 10 | GROMMET ASSY - SCREW | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| 87250B | 85770A5000RY | 1 | TRIM ASSY - REAR TRANSVERSE, INT;RY | | 11.03.2012 | 16.12.2014 |
|
| 87250B | 85770A5000RY | 1 | TRIM ASSY - REAR TRANSVERSE, INT;VYF | | 11.03.2012 | 16.12.2014 |
|
| 92620 | 92620A2000 | 2 | LAMP ASSY - LUGGAGE COMPARTMENT | Engine Type: [6] DOHC - MPI | 11.03.2012 | 16.12.2014 |
|
| 92620 | 92620A2000 | 1 | LAMP ASSY - LUGGAGE COMPARTMENT | Engine Type: [A] DOHC - GDI | 19.12.2012 | 12.12.2014 |
|
| 92620 | 92620A2000 | 1 | LAMP ASSY - LUGGAGE COMPARTMENT | Engine Type: [C] DOHC - TCI | 11.03.2012 | 12.12.2014 |
|
| 95120A | 951203X901 | 1 | SOCKET ASSY - ACCESSORY | [+] Option Codes:
[857AA1] POWER OUTLET
[8591B1] COVER'G SHELF TRIM - WALL PAPER | 11.03.2012 | 16.12.2014 |
|
| H85745 | 85765A5200RY | 1 | LUGGAGE ASSY - CENTER BOX, INT;VYF | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| H85745 | 85765A5200RY | 1 | LUGGAGE ASSY - CENTER BOX, INT;RY | [+] Option Codes:
[857HA1] LUGGAGE UNDER FLOOR BOX
[892DA1] HOLDER - UPR ANCHOR | 11.03.2012 | 16.12.2014 |
|
| REF. 60-651 | FLOOR PANEL | |
