| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1125AB | 1125006141 | 2 | BOLT | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88810C | 88810A5600TX | 1 | SEATBELT ASSY - FRONT, LH, INT;RY | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88810C | 88810A5600VYF | 1 | SEATBELT ASSY - FRONT, LH, INT;VYF | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88820C | 88820A5000TX | 1 | SEATBELT ASSY - FRONT, RH, INT;RY | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88820C | 88820A5000VYF | 1 | SEATBELT ASSY - FRONT, RH, INT;VYF | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA1] GRADE - GL
[8811C1] CLOTH - CLOTH
[8821A1] HEAD REST - UP/DOWN
[8825A4] ADJUSTER - PUMP'G DEVICE | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA1] GRADE - GL
[8811C1] CLOTH - CLOTH
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA2] GRADE - GLS
[8811C1] CLOTH - CLOTH
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE
[8836A1] SEAT BACK POCKET | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA2] GRADE - GLS
[8811C1] CLOTH - CLOTH
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE
[8836A1] SEAT BACK POCKET
[8838A1] SEAT WARMER(HEATER) | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA2] GRADE - GLS
[8811E2] PURE LEATHER
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE
[8836A1] SEAT BACK POCKET | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;VYF | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA1] GRADE - GL
[8811C1] CLOTH - CLOTH
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA2] GRADE - GLS
[8811E2] PURE LEATHER
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE
[8827A1] POWER SEAT
[8828A2] LUMBAR SUPPORT - ELECTRIC
[8836A1] SEAT BACK POCKET
[8838A1] SEAT WARMER(HEATER) | 11.03.2012 | 16.12.2014 |
|
| 88830A | 88830A5000RY | 1 | BUCKLE ASSY - FRONT SEATBELT, LH, INT;VYF | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[863CA2] GRADE - GLS
[8811E2] PURE LEATHER
[8821A3] HEAD REST - UP/DOWN & TILT
[8825A4] ADJUSTER - PUMP'G DEVICE
[8827A1] POWER SEAT
[8828A2] LUMBAR SUPPORT - ELECTRIC
[8836A1] SEAT BACK POCKET
[8838A1] SEAT WARMER(HEATER) | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A1] HEAD REST - UP/DOWN
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A1] HEAD REST - UP/DOWN
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A3] HEAD REST - UP/DOWN & TILT
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A1] HEAD REST - UP/DOWN
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A3] HEAD REST - UP/DOWN & TILT
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;RY | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A3] HEAD REST - UP/DOWN & TILT
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;VYF | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A3] HEAD REST - UP/DOWN & TILT
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88840A | 88840A5200RY | 1 | BUCKLE ASSY - FRONT SEATBELT, RH, INT;VYF | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A3] HEAD REST - UP/DOWN & TILT
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88877 | 888773X000RY | 1 | STOPPER - SEATBELT UPPER, INT;RY | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88877 | 888773X000RY | 1 | STOPPER - SEATBELT UPPER, INT;VYF | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88878 | 888781C000RY | 1 | STOPPER - SEATBELT LOWER, INT;RY | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88878 | 888781C000RY | 1 | STOPPER - SEATBELT LOWER, INT;VYF | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A1] HEAD REST - UP/DOWN
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A1] HEAD REST - UP/DOWN
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811C1] CLOTH - CLOTH
[8854A3] HEAD REST - UP/DOWN & TILT
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A1] HEAD REST - UP/DOWN
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A3] HEAD REST - UP/DOWN & TILT
[8873A1] SEAT WARMER
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88881C | 88882A5000 | 1 | SBR MAT ASSY - FRONT SEAT | [+] Option Codes:
[5693A3] SIDE AIR BAG-FR - FR(THORAX & PELVIS)
[8811E2] PURE LEATHER
[8854A3] HEAD REST - UP/DOWN & TILT
[8889A1] SEAT BELT REMINDER | 11.03.2012 | 16.12.2014 |
|
| 88890A | 888903X000 | 2 | ADJUSTER ASSY - HEIGHT | [+] Option Codes:
[5691A3] DRIVER SIDE - DEPOWERED
[5692A3] PASSENGER SIDE - DEPOWERED | 11.03.2012 | 16.12.2014 |
|

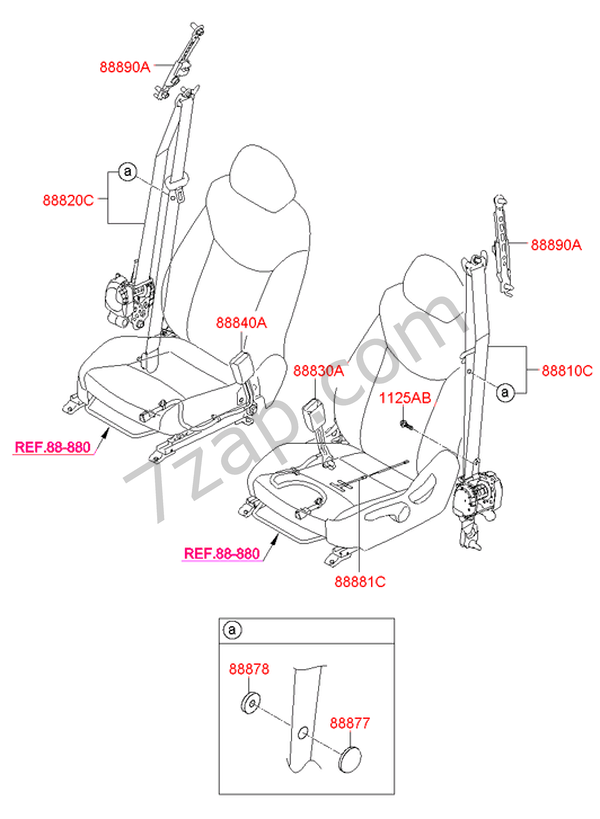

| REF. 88-880 | FRONT SEAT | |
