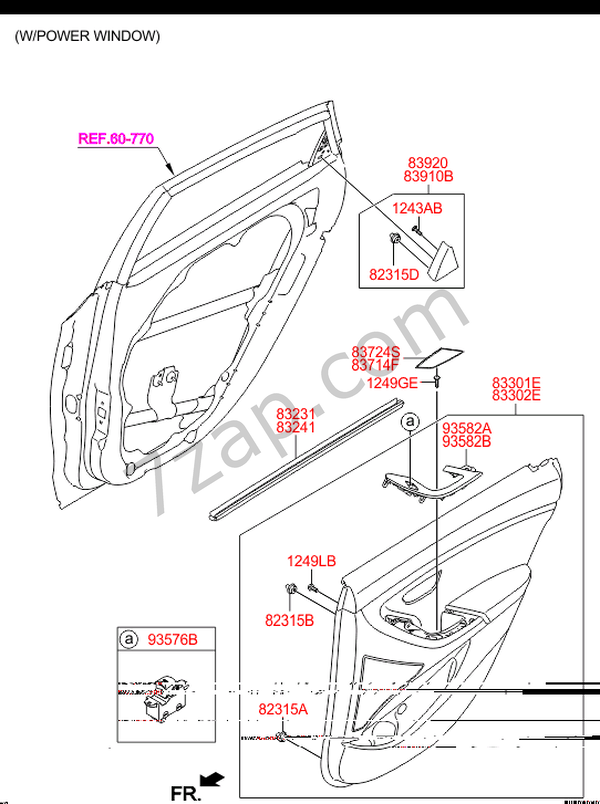

REAR DOOR TRIM (02/02) HYUNDAI i30 15 (2014-)

PNC	Part Number	Qty	Part Name	Model Description	Start Date	End Date	information
1243AB	1243103101	2	SCREW - TAPPING		12.12.2014
1249GE	1249205163	2	SCREW - TAPPING	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
1249GE	1249205163	2	SCREW - TAPPING	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
1249GE	1249205163	2	SCREW - TAPPING	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
1249LB	1249304101	38	SCREW - TAPPING	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
1249LB	1249304101	38	SCREW - TAPPING	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
1249LB	1249304101	38	SCREW - TAPPING	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
82315A	8231538000	6	FASTENER - DOOR TRIM	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
82315A	8231538000	6	FASTENER - DOOR TRIM	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
82315A	8231538000	6	FASTENER - DOOR TRIM	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
82315B	823152P000	16	FASTENER - DOOR TRIM	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
82315B	823152P000	16	FASTENER - DOOR TRIM	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
82315B	823152P000	16	FASTENER - DOOR TRIM	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
82315D	8231527000	2	FASTENER - DOOR TRIM		12.12.2014
83231	83231A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, LH	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83231	83231A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, LH	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83231	83231A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, LH	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83241	83241A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, RH	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83241	83241A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, RH	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83241	83241A5000	1	WEATHERSTRIP - REAR DOOR BELT INSIDE, RH	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83301E	83307A5120RYB	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83301E	83307A5120RYD	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO [863CA1] GRADE - GL	12.12.2014
83301E	83307A5131RTR	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [0094A2] COLOR PACKAGE - TYPE 2 [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	01.12.2015
83301E	83307A5131RTR	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [0094A2] COLOR PACKAGE - TYPE 2 [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	01.12.2015
83301E	83307A5131RYE	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83301E	83307A5131RYE	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	12.12.2014
83301E	83307A5131RYJ	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83301E	83307A5131RYJ	1	PANEL ASSY - REAR DOOR TRIM, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	12.12.2014
83302E	83308A5120RYB	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83302E	83308A5120RYD	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO [863CA1] GRADE - GL	12.12.2014
83302E	83308A5131RTR	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [0094A2] COLOR PACKAGE - TYPE 2 [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	01.12.2015
83302E	83308A5131RTR	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [0094A2] COLOR PACKAGE - TYPE 2 [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	01.12.2015
83302E	83308A5131RYE	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83302E	83308A5131RYE	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	12.12.2014
83302E	83308A5131RYJ	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO [863CA2] GRADE - GLS	12.12.2014
83302E	83308A5131RYJ	1	PANEL ASSY - REAR DOOR TRIM, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY [863CA2] GRADE - GLS	12.12.2014
83714F	83714A5010RY	1	CAP - REAR DOOR PULL HANDLE, LH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83714F	83714A5010RY	1	CAP - REAR DOOR PULL HANDLE, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83714F	83714A5010RY	1	CAP - REAR DOOR PULL HANDLE, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83714F	83714A5010RY	1	CAP - REAR DOOR PULL HANDLE, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83714F	83714A5010RY	1	CAP - REAR DOOR PULL HANDLE, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83724S	83724A5010RY	1	CAP - REAR DOOR PULL HANDLE, RH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83724S	83724A5010RY	1	CAP - REAR DOOR PULL HANDLE, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83724S	83724A5010RY	1	CAP - REAR DOOR PULL HANDLE, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83724S	83724A5010RY	1	CAP - REAR DOOR PULL HANDLE, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
83724S	83724A5010RY	1	CAP - REAR DOOR PULL HANDLE, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
83910B	83910A5000	1	COVER ASSY - REAR DOOR DELTA INNER, LH		12.12.2014
83920	83920A5000	1	COVER ASSY - REAR DOOR FRAME INNER, RH		12.12.2014
93576B	93576A5100	2	UNIT ASSY - POWER WINDOW ASSIST	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
93576B	93576A5110	2	UNIT ASSY - POWER WINDOW ASSIST	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93576B	93576A5110	2	UNIT ASSY - POWER WINDOW ASSIST	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582A	93582A5000RY	1	BEZEL - POWER WINDOW SUB, LH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582A	93582A5000RY	1	BEZEL - POWER WINDOW SUB, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582A	93582A5000RY	1	BEZEL - POWER WINDOW SUB, LH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
93582A	93582A5000RY	1	BEZEL - POWER WINDOW SUB, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582A	93582A5000RY	1	BEZEL - POWER WINDOW SUB, LH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
93582B	93582A5900RY	1	BEZEL - POWER WINDOW SUB, RH, INT;RY	[+] Option Codes: [8233B1] CENTER TRIM - CLOTH(A TYPE) [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582B	93582A5900RY	1	BEZEL - POWER WINDOW SUB, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582B	93582A5900RY	1	BEZEL - POWER WINDOW SUB, RH, INT;RY	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
93582B	93582A5900RY	1	BEZEL - POWER WINDOW SUB, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA1] P/WINDOW RR DR - NONE AUTO	12.12.2014
93582B	93582A5900RY	1	BEZEL - POWER WINDOW SUB, RH, INT;VYF	[+] Option Codes: [8233G1] CENTER TRIM - PURE LEATHER [824CA6] P/WINDOW RR DR - AUTO UP/DOWN & SAFETY	12.12.2014
REF. 60-770	REAR DOOR PANEL
