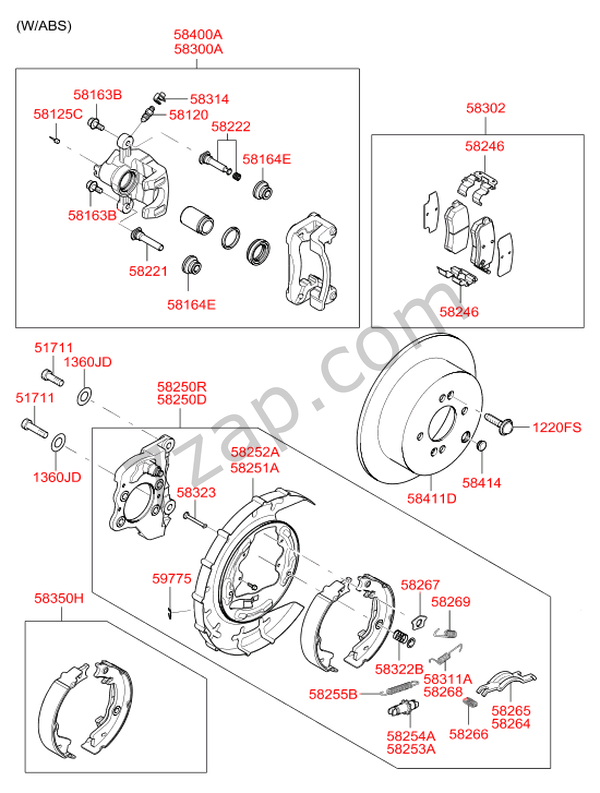

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1220FS | 1220306167K | 2 | SCREW - MACHINE | | 01.01.2006 | 02.01.2007 |
|
| 1360JD | 1360310006K | 4 | WASHER - SPRING | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 51711 | 517111C800 | 2 | BOLT, M10X29MM | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 51711 | 517111G000 | 2 | BOLT, M10X34MM | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 51711 | 517111C800 | 2 | BOLT, M10X29MM | [+] Option Codes:
[5891] ABS
[5896] ESP(ELECTRONIC STABILITY PRM) | 01.01.2006 | 02.01.2007 |
|
| 51711 | 517111G000 | 2 | BOLT, M10X34MM | [+] Option Codes:
[5891] ABS
[5896] ESP(ELECTRONIC STABILITY PRM) | 01.01.2006 | 02.01.2007 |
|
| 58120 | 581201G000 | 1 | SCREW - BLEEDER | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58125C | 581251G000 | 1 | PLUG - CAP | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58163B | 581631G000 | 2 | BOLT - GUIDE ROD | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58164E | 581641G300 | 2 | PIN BOOT | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58221 | 582211G300 | 1 | ROD - GUIDE (A) | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58222 | 582221G300 | 1 | ROD - GUIDE (B) | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58246 | 582461G300 | 2 | SPRING - PAD | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58250D | 583101G300 | 1 | BRAKE ASSY - PARKING REAR, LH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58250R | 584101G300 | 1 | BRAKE ASSY - PARKING REAR, RH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58251A | 582511G300 | 1 | PLATE ASSY - REAR BRAKE BACK, LH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58252A | 582521G300 | 1 | PLATE ASSY - REAR BRAKE BACK, RH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58253A | 582531G300 | 1 | ADJUSTER ASSY, LH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58254A | 582541G300 | 1 | ADJUSTER ASSY, RH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58255B | 582551G300 | 1 | SPRING - SHOE RETURN, LOWER | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58264 | 582641G300 | 1 | STRUT | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58265 | 582651G300 | 1 | STRUT, RH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58266 | 582661G300 | 1 | SPRING - STRUT | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58267 | 582671G300 | 1 | PLATE - SHOE GUIDE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58268 | 582681G300 | 1 | SPRING - SHOE RETURN "A" | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58269 | 582691G300 | 1 | SPRING - SHOE RETURN "B" | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58300A | 583001G300 | 1 | DISC BRAKE ASSY - REAR, LH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58300B | 583101G000 | 1 | DRUM BRAKE ASSY - REAR, LH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58300B | 583101G000 | 1 | DRUM BRAKE ASSY - REAR, LH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58302 | 583021GA00 | 1 | PAD KIT - REAR DISC BRAKE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58302 | S583021GA00
UNIFIT: 583021GA00 | 1 | PAD KIT - REAR DISC BRAKE
PRODUCT LINE 2: Not to be used for warranty repair
LOCAL: [SE] SWEDEN; [NO] NORWAY; [FI] FINLAND; [DK] DENMARK; [EE] ESTONIA; [LT] LITHUANIA; [LV] LATVIA; [BA] BOSNIA AND HERZEGOVINA; [BG] BULGARIA; [HR] CROATIA; [CZ] CZECH REPUBLIC; [DE] GERMANY; [MK] MACEDONIA, THE FORMER YUGOSLAV REPUBLIC OF; [RO] ROMANIA; [RS] SERBIA; [SI] SLOVENIA; [IC] CANARY ISLANDS; [ES] SPAIN; [FR] FRANCE; [AT] AUSTRIA; [UA] UKRAINE; [HU] HUNGARY; [SK] SLOVAKIA; [PL] POLAND; [UK] ; [IE] IRELAND; [IT] ITALY; [MD] MOLDOVA, REPUBLIC OF; [NL] NETHERLANDS; [GR] GREECE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58302 | S583021GA00
UNIFIT: 583021GA00 | 1 | PAD KIT - REAR DISC BRAKE
PRODUCT LINE 2: Not to be used for warranty repair
LOCAL: [PT] PORTUGAL | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58305 | 583051GA00 | 1 | SHOE & LINING KIT - REAR BRAKE | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58305 | 583051GA00 | 1 | SHOE & LINING KIT - REAR BRAKE | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58311A | 583111G000 | 1 | SPRING - SHOE RETURN, UPPER | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58311A | 583111G000 | 1 | SPRING - SHOE RETURN, UPPER | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58312A | 583121G000 | 1 | SPRING - SHOE RETURN, LOWER | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58312A | 583121G000 | 1 | SPRING - SHOE RETURN, LOWER | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58314 | 581211G000 | 1 | CAP - BLEEDER SCREW | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58322B | 582721G300 | 2 | SPRING - SHOE HOLD DOWN | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58322B | 582721G300 | 2 | SPRING - SHOE HOLD DOWN | [+] Option Codes:
[5891] ABS
[5896] ESP(ELECTRONIC STABILITY PRM) | 01.01.2006 | 02.01.2007 |
|
| 58322B | 583221G000 | 2 | SPRING - SHOE HOLD DOWN | Body Type: [F] 4 DR SEDAN
Grade: [D] MIDDLE GRADE
Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58322B | 583221G000 | 2 | SPRING - SHOE HOLD DOWN | Body Type: [F] 4 DR SEDAN
Grade: [D] MIDDLE GRADE
Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58323 | 583231G000 | 2 | PIN - SHOE HOLD DOWN | | 01.01.2006 | 02.01.2007 |
|
| 58330A | 583301G000 | 1 | CYLINDER ASSY - WHEEL | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58330A | 583301G000 | 1 | CYLINDER ASSY - WHEEL | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58350G | 583501G000 | 1 | ADJUSTER ASSY, LH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58350G | 583501G000 | 1 | ADJUSTER ASSY, LH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58350H | 583501GA00 | 1 | SHOE KIT - PARKING BRAKE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58355 | 583551G000 | 1 | PLATE ASSY - REAR BRAKE BACK, LH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58355 | 583551G000 | 1 | PLATE ASSY - REAR BRAKE BACK, LH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58356A | 583531G000 | 1 | LEVER - PAWL, LH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58356A | 583531G000 | 1 | LEVER - PAWL, LH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58365 | 583651G000 | 1 | PLATE ASSY - REAR BRAKE BACK, RH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58365 | 583651G000 | 1 | PLATE ASSY - REAR BRAKE BACK, RH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58366A | 583631G000 | 1 | LEVER - PAWL, RH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58366A | 583631G000 | 1 | LEVER - PAWL, RH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58370 | 583701G000 | 1 | ADJUSTER ASSY, RH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58370 | 583701G000 | 1 | ADJUSTER ASSY, RH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58384A | 583841G000 | 1 | SPRING - ADJUST | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58384A | 583841G000 | 1 | SPRING - ADJUST | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58386B | 583861G000 | 1 | PLUG - INSPECTION | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58386B | 583861G000 | 1 | PLUG - INSPECTION | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58388G | 583881G000 | 1 | PLUG - ADJUSTER | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58388G | 583881G000 | 1 | PLUG - ADJUSTER | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58394 | 583941G000 | 2 | BOLT | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58394 | 583941G000 | 2 | BOLT | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58400A | 584001G300 | 1 | DISC BRAKE ASSY - REAR, RH | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58400B | 583601G000 | 1 | DRUM BRAKE ASSY - REAR, RH | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58400B | 583601G000 | 1 | DRUM BRAKE ASSY - REAR, RH | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58411C | 584111G000 | 2 | DRUM - REAR BRAKE | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58411C | L584111G000
TURKEY: 584111G000 | 2 | DRUM - REAR BRAKE
LOCAL: [TR] TURKEY | Engine Capacity: [N] 1400 CC | 01.01.2006 | 02.01.2007 |
|
| 58411C | 584111G000 | 2 | DRUM - REAR BRAKE | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58411C | L584111G000
TURKEY: 584111G000 | 2 | DRUM - REAR BRAKE
LOCAL: [TR] TURKEY | Engine Capacity: [P] 1500 CC | 01.01.2006 | 02.01.2007 |
|
| 58411D | 584111C800 | 2 | DISC - REAR BRAKE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58411D | S584111C800
UNIFIT: 584111C800 | 2 | DISC - REAR BRAKE
PRODUCT LINE 2: Not to be used for warranty repair
LOCAL: [SE] SWEDEN; [NO] NORWAY; [FI] FINLAND; [DK] DENMARK; [EE] ESTONIA; [LT] LITHUANIA; [LV] LATVIA; [BA] BOSNIA AND HERZEGOVINA; [BG] BULGARIA; [HR] CROATIA; [CZ] CZECH REPUBLIC; [DE] GERMANY; [MK] MACEDONIA, THE FORMER YUGOSLAV REPUBLIC OF; [RO] ROMANIA; [RS] SERBIA; [SI] SLOVENIA; [IC] CANARY ISLANDS; [ES] SPAIN; [FR] FRANCE; [AT] AUSTRIA; [UA] UKRAINE; [HU] HUNGARY; [SK] SLOVAKIA; [PL] POLAND; [UK] ; [IE] IRELAND; [IT] ITALY; [MD] MOLDOVA, REPUBLIC OF; [NL] NETHERLANDS; [GR] GREECE | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58411D | S584111C800
UNIFIT: 584111C800 | 2 | DISC - REAR BRAKE
PRODUCT LINE 2: Not to be used for warranty repair
LOCAL: [PT] PORTUGAL | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58411D | S584111C800E
UNIFIT: 584111C800 | 2 | DISC - REAR BRAKE
PRODUCT LINE 2: Not to be used for warranty repair
LOCAL: [PT] PORTUGAL | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 58414 | 5841438000 | 4 | PLUG | [+] Option Codes:
[5891] ABS | 01.01.2006 | 02.01.2007 |
|
| 59775 | 597751G000 | 1 | RING - PARK CABLE RETAINING | | 01.01.2006 | 02.01.2007 |
|
