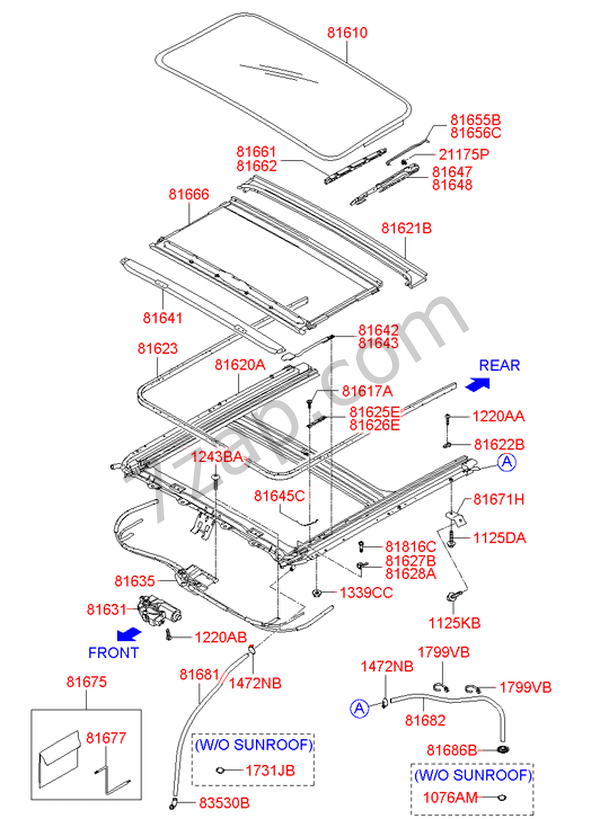

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1076AM | 1731325000 | 2 | PLUG | | 01.01.2006 | 02.01.2007 |
|
| 1125DA | 1125106161 | 2 | BOLT - WASHER ASSY | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1125KB | 1125406161 | 4 | BOLT | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1220AA | 1220103063 | 2 | SCREW - MACHINE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1220AB | 1220105301 | 3 | SCREW - MACHINE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1243BA | 1243104083 | 4 | SCREW - TAPPING | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1339CC | 1339506001 | 8 | NUT - FLANGE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1472NB | 1472514001 | 2 | CLAMP - (HOSE) | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 1731JB | 1731316000 | 2 | PLUG | | 01.01.2006 | 02.01.2007 |
|
| 1799VB | 1799815207 | 8 | BAND - CABLE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 21175P | 816153E000 | 6 | SCREW | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81610 | 816101G000 | 1 | PANEL ASSY - SUNROOF GLASS | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81617A | 816173E000 | 4 | SCREW - SET PLATE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81620A | 816201E000 | 1 | FRAME ASSY - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81621B | 816212F000 | 1 | RAIL ASSY - SUNROOF DRIP | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81622B | 816493K000 | 2 | STOPPER - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81623 | 816232F000 | 2 | SEAL - TAPE SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81625E | 816252F000 | 1 | SET PLATE - SUNROOF, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81626E | 816262F000 | 1 | SET PLATE - SUNROOF, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81627B | 816271G000 | 1 | STOPPER ASSY - FRONT SUNROOF, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81628A | 816281G000 | 1 | STOPPER ASSY - FRONT SUNROOF, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81631 | 816311E001 | 1 | MOTOR ASSY - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81635 | 816351G000 | 1 | TUBE ASSY - SUNROOF DRIVE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81641 | 816411G000 | 1 | DEFLECTOR ASSY - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81642 | 816421G000 | 1 | DEFLECTOR LINK - SUNROOF, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81643 | 816431G000 | 1 | DEFLECTOR LINK - SUNROOF, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81645C | 816452F000 | 2 | SPRING - DEFLECTOR | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81647 | 816472F000 | 1 | GUIDE ASSY - SUNROOF REAR, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81648 | 816482F000 | 1 | GUIDE ASSY - SUNROOF REAR, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81655B | 816552F000 | 1 | DRIP LINK - SUNROOF, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81656C | 816562F000 | 1 | DRIP LINK - SUNROOF, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81661 | 816611E000 | 1 | COVER - SUNROOF DECORATION, LH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81662 | 816621E000 | 1 | COVER - SUNROOF DECORATION, RH | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81666 | 816661E000OR | 1 | SUNSHADE ASSY - SUNROOF, INT;AR | Body Type: [F] 4 DR SEDAN
Grade: [D] MIDDLE GRADE
Transmission: [5] 5 SPEED MT 2WD
[+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81666 | 816661E000QS | 1 | SUNSHADE ASSY - SUNROOF, INT;FZ | Body Type: [F] 4 DR SEDAN
Grade: [D] MIDDLE GRADE
Transmission: [5] 5 SPEED MT 2WD
[+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81666 | 816661E000OR | 1 | SUNSHADE ASSY - SUNROOF, INT;AR | Body Type: [F] 4 DR SEDAN
Grade: [G] HIGH GRADE
[+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81666 | 816661E000QS | 1 | SUNSHADE ASSY - SUNROOF, INT;FZ | Body Type: [F] 4 DR SEDAN
Grade: [G] HIGH GRADE
[+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81671H | 816711E200 | 2 | BRACKET - SUNROOF SET, FRONT | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81675 | 816753K000 | 1 | WRENCH ASSY - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81677 | 816773K000 | 1 | WRENCH - SUNROOF | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81681 | 816811G000 | 2 | HOSE - SUNROOF DRAIN FRONT | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81682 | 816821G000 | 2 | HOSE - SUNROOF DRAIN REAR | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81686B | 8168638000 | 2 | GROMMET - SUNROOF DRAIN HOSE | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 81816C | 816163E000 | 2 | SCREW - FRONT STOPPER | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
| 83530B | 816861C000 | 2 | JOINT | [+] Option Codes:
[8162] ROOF-SUN(AUTO) | 01.01.2006 | 02.01.2007 |
|
