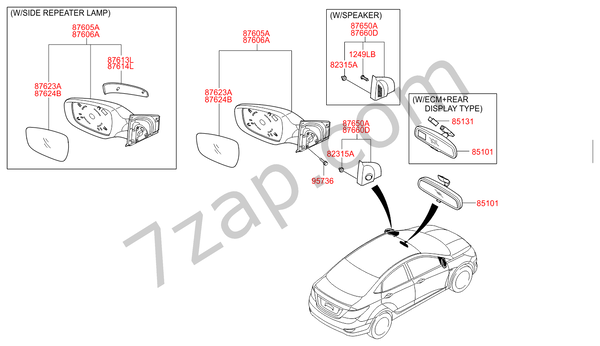

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1249LB | 1249304103 | 4 | SCREW - TAPPING | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 1249LB | 1249304103 | 4 | SCREW - TAPPING | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 82315A | 8231533020 | 2 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV | 03.08.2014 | 14.11.2016 |
|
| 82315A | 8231533020 | 2 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV | 03.08.2014 | |
|
| 82315A | 8231538000 | 6 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV | 03.08.2014 | 14.11.2016 |
|
| 82315A | 8231538000 | 6 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV | 03.08.2014 | |
|
| 82315A | 8231538000 | 6 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 82315A | 8231538000 | 6 | FASTENER - DOOR TRIM | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 85101 | 851013X100 | 1 | MIRROR ASSY - REAR VIEW INSIDE | [+] Option Codes:
[8511B1] DAY/NIGHT TYPE | 03.08.2014 | |
|
| 85101 | 851012K600 | 1 | MIRROR ASSY - REAR VIEW INSIDE | [+] Option Codes:
[8511G3] ECM+REAR DISPLAY TYPE | 03.08.2014 | |
|
| 85131 | 851302G000 | 1 | COVER - REAR VIEW INSIDE MIRROR | [+] Option Codes:
[8511G3] ECM+REAR DISPLAY TYPE | 03.08.2014 | |
|
| 87605A | 876101R110 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87605A | 876101R120 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87605A | 876101R130 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87605A | 876101R140 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87606A | 876201R110 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, RH | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87606A | 876201R120 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, RH | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87606A | 876201R130 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, RH | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87606A | 876201R140 | 1 | MIRROR ASSY - OUTSIDE REAR VIEW, RH | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87613L | 876141R000 | 1 | LAMP ASSY - OUTSIDE MIRROR, LH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87613L | 876141R000 | 1 | LAMP ASSY - OUTSIDE MIRROR, LH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87614L | 876241R000 | 1 | LAMP ASSY - OUTSIDE MIRROR, RH | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87614L | 876241R000 | 1 | LAMP ASSY - OUTSIDE MIRROR, RH | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87623A | 876111R100 | 1 | MIRROR & HOLDER ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87623A | 876111R200 | 1 | MIRROR & HOLDER ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87623A | 876111R200 | 1 | MIRROR & HOLDER ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87623A | 876111R100 | 1 | MIRROR & HOLDER ASSY - OUTSIDE REAR VIEW, LH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87624B | 876211R100 | 1 | MIRROR & HOLDER - OUTSIDE REAR, RH | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87624B | 876211R200 | 1 | MIRROR & HOLDER - OUTSIDE REAR, RH | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 87624B | 876211R200 | 1 | MIRROR & HOLDER - OUTSIDE REAR, RH | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87624B | 876211R100 | 1 | MIRROR & HOLDER - OUTSIDE REAR, RH | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 87650A | 876501R010 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV | 03.08.2014 | 14.11.2016 |
|
| 87650A | 876501R010 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV | 03.08.2014 | |
|
| 87650A | 876501R020 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 87650A | 876501R020 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 87660D | 876601R010 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER, RH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV | 03.08.2014 | 14.11.2016 |
|
| 87660D | 876601R010 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER, RH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV | 03.08.2014 | |
|
| 87660D | 876601R020 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER, RH | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 87660D | 876601R020 | 1 | COVER ASSY - FRONT DOOR QUADRANT INNER, RH | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[963KA1] SPEAKER LOCATION TWEETER-FR DR UPR | 03.08.2014 | 14.11.2016 |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8762C4] PASS'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8763C4] DRIVER'S SIDE - ELECTRIC HTD-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8762C2] PASS'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
| 95736 | 9275525100 | 3 | BOLT | [+] Option Codes:
[8763C2] DRIVER'S SIDE - ELECTRIC-CONV
[8765A2] COLOR - BODY COLOR
[876NA1] SIDE REPEATER LAMP (O/S MRR) | 03.08.2014 | |
|
