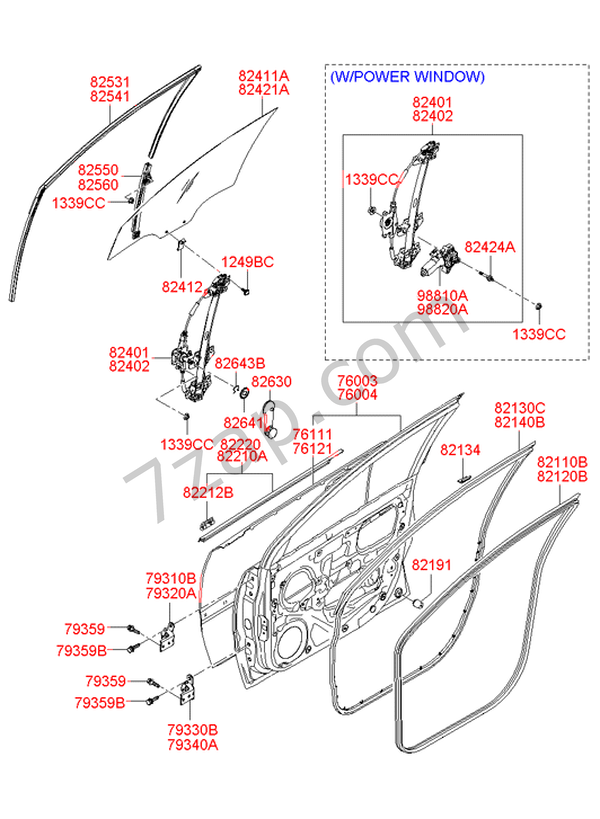

| PNC | Part Number | Qty | Part Name | Model Description | Start Date | End Date | information |
|---|
| 1249BC | 1249206181 | 4 | SCREW - TAPPING | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 28.02.2012 |
|
| 1249BC | 1249206181 | 4 | SCREW - TAPPING | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 1339CC | 1339506001 | 14 | NUT - FLANGE | | 02.01.2007 | 28.02.2012 |
|
| 1339CC | 1339506001 | 4 | NUT - FLANGE | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 28.02.2012 |
|
| 1339CC | 1339506001 | 4 | NUT - FLANGE | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 1339CC | 1339506001 | 14 | NUT - FLANGE | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 28.02.2012 |
|
| 76003 | 760030N000 | 1 | PANEL ASSY - FRONT DOOR, LH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 76004 | 760040N000 | 1 | PANEL ASSY - FRONT DOOR, RH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 76111 | 761110P010 | 1 | PANEL - FRONT DOOR OUTER, LH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 76121 | 761210P010 | 1 | PANEL - FRONT DOOR OUTER, RH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79310B | 793101G000 | 1 | HINGE ASSY - FRONT DOOR UPPER, LH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79320A | 793201G000 | 1 | HINGE ASSY - FRONT DOOR UPPER, RH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79330B | 793151E000 | 1 | HINGE ASSY - DOOR LOWER, LH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79340A | 793251E000 | 1 | HINGE ASSY - DOOR LOWER, RH | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79359 | 7935921000 | 8 | BOLT | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 28.02.2012 |
|
| 79359B | 793593B000 | 8 | BOLT | [+] Option Codes:
[6501A1] HIGH GRADE | 02.01.2007 | 01.07.2009 |
|
| 79359B | 793593K000 | 8 | BOLT | [+] Option Codes:
[6501A1] HIGH GRADE | 01.07.2009 | 28.02.2012 |
|
| 82110B | 821100P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;WK | | 01.11.2008 | 28.02.2012 |
|
| 82110B | 821100P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;AR | | 01.11.2008 | 28.02.2012 |
|
| 82110B | 821100P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;FZ | | 01.11.2008 | 28.02.2012 |
|
| 82110B | 821101E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;AR | | 02.01.2007 | 01.11.2008 |
|
| 82110B | 821101E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;FZ | | 02.01.2007 | 01.11.2008 |
|
| 82110B | 821101E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, LH, INT;WK | | 01.06.2008 | 01.11.2008 |
|
| 82120B | 821200P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;WK | | 01.11.2008 | 28.02.2012 |
|
| 82120B | 821200P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;AR | | 01.11.2008 | 28.02.2012 |
|
| 82120B | 821200P000CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;FZ | | 01.11.2008 | 28.02.2012 |
|
| 82120B | 821201E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;AR | | 02.01.2007 | 01.11.2008 |
|
| 82120B | 821201E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;FZ | | 02.01.2007 | 01.11.2008 |
|
| 82120B | 821201E001CH | 1 | WEATHERSTRIP - FRONT DOOR BODY SIDE, RH, INT;WK | | 01.06.2008 | 01.11.2008 |
|
| 82130C | 821300M000 | 1 | WEATHERSTRIP ASSY - FRONT DOOR SIDE, LH | | 01.06.2008 | 28.02.2012 |
|
| 82130C | 821300P000 | 1 | WEATHERSTRIP ASSY - FRONT DOOR SIDE, LH | | 02.01.2007 | 01.06.2008 |
|
| 82134 | 8213422000 | 4 | CLIP - DOOR OPENING WEATHERSTRIP FIXING | | 02.01.2007 | 28.02.2012 |
|
| 82140B | 821400M000 | 1 | WEATHERSTRIP ASSY - FRONT DOOR SIDE, RH | | 01.06.2008 | 28.02.2012 |
|
| 82140B | 821400P000 | 1 | WEATHERSTRIP ASSY - FRONT DOOR SIDE, RH | | 02.01.2007 | 01.06.2008 |
|
| 82191 | 8219128010 | 2 | BUMPER - DOOR OVERSLAM | | 02.01.2007 | 28.02.2012 |
|
| 82210A | 822101E000 | 1 | WEATHERSTRIP - FRONT DOOR BELT OUTSIDE, LH | | 02.01.2007 | 01.11.2008 |
|
| 82212B | 82290H1000 | 2 | TAPPING SCREW ASSY - NYLON WASHER | | 02.01.2007 | 28.02.2012 |
|
| 82220 | 822201E000 | 1 | WEATHERSTRIP ASSY - FRONT DOOR BELT OUTSIDE, RH | | 02.01.2007 | 01.11.2008 |
|
| 82401 | 824010N000 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, LH | | 01.06.2008 | 28.02.2012 |
|
| 82401 | 824010N010 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, LH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 01.06.2008 | 28.02.2012 |
|
| 82401 | 824011G000 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, LH | | 02.01.2007 | 01.06.2008 |
|
| 82401 | 824011G010 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, LH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 01.06.2008 |
|
| 82402 | 824020N000 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, RH | | 01.06.2008 | 28.02.2012 |
|
| 82402 | 824020N010 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, RH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 01.06.2008 | 28.02.2012 |
|
| 82402 | 824021G000 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, RH | | 02.01.2007 | 01.06.2008 |
|
| 82402 | 824021G010 | 1 | REGULATOR ASSY - FRONT DOOR WINDOW, RH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 01.06.2008 |
|
| 82411A | 824111E000 | 1 | GLASS - FRONT DOOR WINDOW, LH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 28.02.2012 |
|
| 82411A | 824111E010 | 1 | GLASS - FRONT DOOR WINDOW, LH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 82411A | L824111E010
TURKEY: 824111E010 | 1 | GLASS - FRONT DOOR WINDOW, LH
LOCAL: [TR] TURKEY | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 82412 | 8241217000 | 2 | GRIP - DOOR GLASS | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 82421A | 824211E000 | 1 | GLASS - FRONT DOOR WINDOW, RH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 28.02.2012 |
|
| 82421A | 824211E010 | 1 | GLASS - FRONT DOOR WINDOW, RH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 82421A | L824211E010
TURKEY: 824211E010 | 1 | GLASS - FRONT DOOR WINDOW, RH
LOCAL: [TR] TURKEY | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 28.02.2012 |
|
| 82424A | 824241G010 | 6 | BOLT | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 28.02.2012 |
|
| 82531 | 825300P000 | 1 | RUN - FRONT DOOR WINDOW GLASS, LH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 01.11.2008 | 28.02.2012 |
|
| 82531 | 825300P000 | 1 | RUN - FRONT DOOR WINDOW GLASS, LH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 01.11.2008 | 28.02.2012 |
|
| 82531 | 825301E000 | 1 | RUN - FRONT DOOR WINDOW GLASS, LH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 01.11.2008 |
|
| 82531 | 825301E000 | 1 | RUN - FRONT DOOR WINDOW GLASS, LH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 01.11.2008 |
|
| 82541 | 825400P000 | 1 | RUN - FRONT DOOR WINDOW GLASS, RH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 01.11.2008 | 28.02.2012 |
|
| 82541 | 825400P000 | 1 | RUN - FRONT DOOR WINDOW GLASS, RH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 01.11.2008 | 28.02.2012 |
|
| 82541 | 825401E000 | 1 | RUN - FRONT DOOR WINDOW GLASS, RH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 01.11.2008 |
|
| 82541 | 825401E000 | 1 | RUN - FRONT DOOR WINDOW GLASS, RH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 01.11.2008 |
|
| 82550 | 825500P000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, LH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 01.11.2008 | 28.02.2012 |
|
| 82550 | 825500P000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, LH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 01.11.2008 | 28.02.2012 |
|
| 82550 | 825501E000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, LH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 01.11.2008 |
|
| 82550 | 825501E000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, LH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 01.11.2008 |
|
| 82560 | 825600P000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, RH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 01.11.2008 | 28.02.2012 |
|
| 82560 | 825600P000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, RH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 01.11.2008 | 28.02.2012 |
|
| 82560 | 825601E000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, RH | [+] Option Codes:
[8241A1] FR DR GLASS - CLEAR | 02.01.2007 | 01.11.2008 |
|
| 82560 | 825601E000 | 1 | CHANNEL ASSY - FRONT DOOR REAR, RH | [+] Option Codes:
[8241A2] FR DR GLASS - TINTED | 02.01.2007 | 01.11.2008 |
|
| 82630 | 8263022001OR | 2 | HANDLE ASSY - DOOR WINDOW REGULATOR, INT;AR | | 01.04.2007 | 28.02.2012 |
|
| 82630 | 8263022001QS | 2 | HANDLE ASSY - DOOR WINDOW REGULATOR, INT;FZ | | 01.04.2007 | 28.02.2012 |
|
| 82641 | 8264133002AR | 2 | ESCUTCHEON - DOOR WINDOW REGULATOR HANDLE, INT;AR | | 02.01.2007 | 28.02.2012 |
|
| 82641 | 8264133002FZ | 2 | ESCUTCHEON - DOOR WINDOW REGULATOR HANDLE, INT;FZ | | 02.01.2007 | 28.02.2012 |
|
| 82643B | 8264321000 | 2 | CLIP - DOOR REGULATOR HANDLE | | 02.01.2007 | 28.02.2012 |
|
| 98810A | 988101G100 | 1 | MOTOR ASSY - POWER WINDOW REGULATOR FRONT, LH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 28.02.2012 |
|
| 98820A | 988201G100 | 1 | MOTOR ASSY - POWER WINDOW REGULATOR FRONT, RH | [+] Option Codes:
[8341A2] POWER WINDOW(FR+RR) | 02.01.2007 | 28.02.2012 |
|
